Predefined
Definition
Assembly: KGySoft.Drawing.Core (in KGySoft.Drawing.Core.dll) Version: 10.0.0-rc.1
public static PredefinedColorsQuantizer Argb1555(
Color32 backColor = default,
byte alphaThreshold = 128
)Public Shared Function Argb1555 (
Optional backColor As Color32 = Nothing,
Optional alphaThreshold As Byte = 128
) As PredefinedColorsQuantizerpublic:
static PredefinedColorsQuantizer^ Argb1555(
Color32 backColor = Color32(),
unsigned char alphaThreshold = 128
)static member Argb1555 :
?backColor : Color32 *
?alphaThreshold : byte
(* Defaults:
let _backColor = defaultArg backColor new Color32()
let _alphaThreshold = defaultArg alphaThreshold 128
*)
-> PredefinedColorsQuantizer Parameters
- backColor Color32 (Optional)
- Colors with alpha (transparency), whose Color32.A field
is equal to or greater than alphaThreshold will be blended with this color before quantizing.
The Color32.A field of the background color is ignored. This parameter is optional.
Default value: The default value of the Color32 type, which has the same RGB values as Color.Black. - alphaThreshold Byte (Optional)
- Specifies a threshold value for the Color32.A field, under which a quantized color is considered transparent.
If 0, then the quantized colors will never be transparent. This parameter is optional.
Default value: 128.
Return Value
PredefinedColorsQuantizerA PredefinedColorsQuantizer instance that can quantize colors to 16-bit ones where each color component is encoded in 5 bits.
Remarks
The returned PredefinedColorsQuantizer instance can return up to 32,768 colors, and a transparent color.
This quantizer fits well for the Format16bppArgb1555 pixel format.
Examples
public static IReadWriteBitmapData ToArgb1555(IReadWriteBitmapData source, Color32 backColor = default,
byte alphaThreshold = 128, IDitherer ditherer = null)
{
IQuantizer quantizer = PredefinedColorsQuantizer.Argb1555(backColor, alphaThreshold);
// a.) this solution returns a new bitmap data and does not change the original one:
return source.Clone(KnownPixelFormat.Format16bppArgb1555, quantizer, ditherer);
// b.) when converting to Format16bppArgb1555 format without dithering, this produces the same result:
if (ditherer == null)
return source.Clone(KnownPixelFormat.Format16bppArgb1555, backColor, alphaThreshold);
// c.) alternatively, you can perform the quantizing directly on the source bitmap data:
if (ditherer == null)
source.Quantize(quantizer);
else
source.Dither(quantizer, ditherer);
return source;

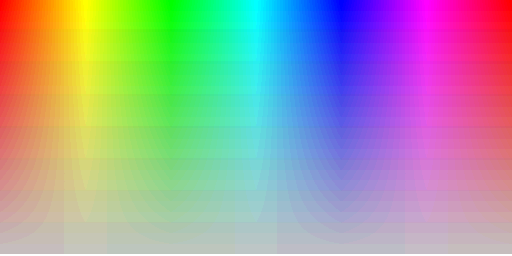

}The example above may produce the following results:
Original image | Quantized image |
|---|---|
|
|
|
|
