OrderedDithererBayer4x4 Property

Gets an OrderedDitherer using the standard Bayer 4x4 matrix.

Definition

Namespace: KGySoft.Drawing.Imaging
Assembly: KGySoft.Drawing.Core (in KGySoft.Drawing.Core.dll) Version: 10.0.0-rc.1

C#

public static OrderedDitherer Bayer4x4 { get; }

VB

Public Shared ReadOnly Property Bayer4x4 As OrderedDitherer
	Get

C++

public:
static property OrderedDitherer^ Bayer4x4 {
	OrderedDitherer^ get ();
}

F#

static member Bayer4x4 : OrderedDitherer with get

Property Value

OrderedDitherer

Examples

The following example demonstrates how to use the ditherer returned by this property:

C#

public static IReadWriteBitmapData ToDitheredBayer4x4(IReadWriteBitmapData source, IQuantizer quantizer)
{
    IDitherer ditherer = OrderedDitherer.Bayer4x4;

    // a.) this solution returns a new bitmap data and does not change the original one:
    return source.Clone(quantizer.PixelFormatHint, quantizer, ditherer);

    // b.) alternatively, you can perform the dithering directly on the source bitmap data:
    source.Dither(quantizer, ditherer);
    return source;
}

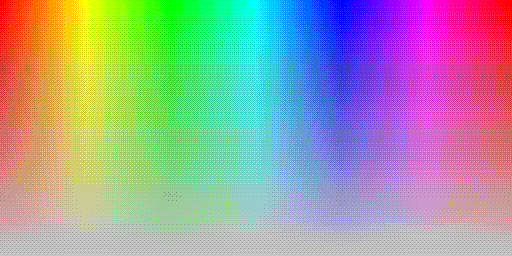

The example above may produce the following results:

Original image	Quantized and dithered image
Color hues with alpha gradient	Quantizing with system default 8 BPP palette
Grayscale color shades	Quantizing with black and white palette

Tip

See the Remarks section of the OrderedDitherer class for more details and examples.
