AdvancedErrorProvider Class

An ErrorProvider with a SetMessage event, which is triggered if the DataSource property is set and the message of a bound property is about to be retrieved. It also fixes the scaling of the displayed icon if the Icon property is explicitly set.

Definition

Namespace: KGySoft.WinForms.Components
Assembly: KGySoft.WinForms (in KGySoft.WinForms.dll) Version: 5.0.1

C#

[ToolboxBitmapAttribute(typeof(ErrorProvider))]
public class AdvancedErrorProvider : ErrorProvider

VB

<ToolboxBitmapAttribute(GetType(ErrorProvider))>
Public Class AdvancedErrorProvider
	Inherits ErrorProvider

C++

[ToolboxBitmapAttribute(typeof(ErrorProvider))]
public ref class AdvancedErrorProvider : public ErrorProvider

F#

[<ToolboxBitmapAttribute(typeof(ErrorProvider))>]
type AdvancedErrorProvider =
    class
        inherit ErrorProvider
    end

Inheritance: Object MarshalByRefObject Component ErrorProvider AdvancedErrorProvider

Remarks

If the original ErrorProvider is used with WinForms data binding (by setting the DataSource property), the bound items must implement the IDataErrorInfo interface to make the error messages appear on the controls. The AdvancedErrorProvider class allows customizing this behavior by providing a SetMessage event, which can be handled to allow the messages to be retrieved from any custom source.

If the bound objects implement the IDataErrorInfo interface, the error messages are preinitialized in the SetMessageEventArgs.Message property when the SetMessage event is raised.

Tip

To provide error/message/info messages for objects, create three instances of this class. Set their icon accordingly (you can use the properties of the Icons class from KGySoft.Drawing), and handle the SetMessage event. You can derive the bound objects from the ValidatingObjectBase class (or implement the IValidatingObject interface) to provide error/warning/info messages for the bound properties. See also the Examples section for an illustration.

If you explicitly set the Icon property, and the IconSizeMode property is not SystemDefault, the AdvancedErrorProvider component ensures that the icon is scaled correctly on all platform targets. See the Remarks section of the IconSizeMode property for more details.

Examples

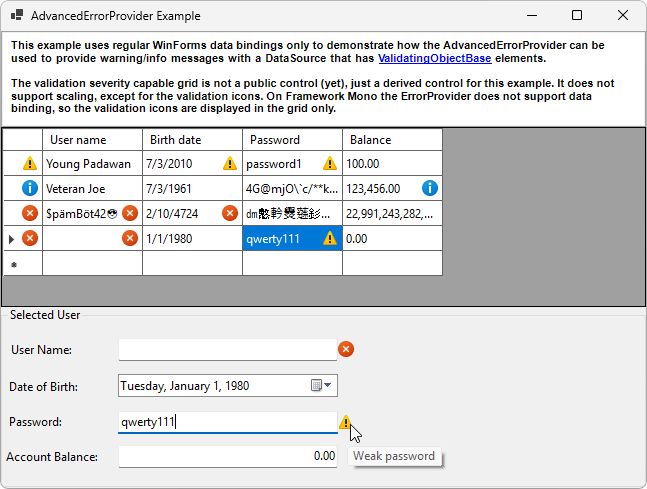

The following image illustrates how to use three AdvancedErrorProvider instances to provide error, warning and info messages for controls by using data binding, and deriving the items from the ValidatingObjectBase class:

Error/Warning/Info providers in the KGySoft.WinForms.Example application

Tip

The image above is from the example application, where you can find the source code of

the form (AdvancedErrorProviderExample.cs) with the three providers,
the view-model class (AdvancedErrorProviderExampleViewModel.cs) containing the bound collection,
the class of the items (ValidatingObjectExample.cs) derived from ValidatingObjectBase,
and the specialized grid (ValidatingDataGridView.cs), which is just a bonus, and is not strictly needed for the providers to work.

At the Releases page of the project repository you can download it as executable binaries as well. The example is located under the Misc Tests / AdvancedErrorProvider example menu.

Constructors

AdvancedErrorProvider	Initializes a new instance of the AdvancedErrorProvider class with default settings.
AdvancedErrorProvider(ContainerControl)	Initializes a new instance of the AdvancedErrorProvider class attached to a container.
AdvancedErrorProvider(IContainer)	Initializes a new instance of the AdvancedErrorProvider class attached to an IContainer implementation.

Properties

ContainerControl	Gets or sets a value indicating the parent control for this ErrorProvider.
Icon	Gets or sets the icon for this AdvancedErrorProvider. Explicitly set icons can be scaled automatically, depending on the IconSizeMode property. See the Remarks section of the IconSizeMode property for details.
IconSizeMode	Gets or sets the icon sizing behavior for explicitly set icons. Default value: AutoScale.
ShowBindingErrors	Gets or sets whether binding errors should be shown by this AdvancedErrorProvider. Default value: .

Methods

Dispose	Releases this AdvancedErrorProvider instance. (Overrides ErrorProviderDispose(Boolean))
OnSetMessage	Raises the SetMessage event.
UpdateBinding	Provides a method to update the bindings of the DataSource, DataMember, and the error text.

Events

SetMessage

Occurs when the DataSource property is set and the message of a bound property is about to be retrieved.
