FadingPainterTState Class

Helper class for buffered fading animations. The host control must implement the ISupportsFadingTState interface.

Definition

Namespace: KGySoft.WinForms.Controls
Assembly: KGySoft.WinForms (in KGySoft.WinForms.dll) Version: 5.0.1

C#

public class FadingPainter<TState> : IDisposable

VB

Public Class FadingPainter(Of TState)
	Implements IDisposable

C++

generic<typename TState>
public ref class FadingPainter : IDisposable

F#

type FadingPainter<'TState> =
    class
        interface IDisposable
    end

Inheritance: Object FadingPainterTState

Implements: IDisposable

Type Parameters

TState: The type of the state object.

Examples

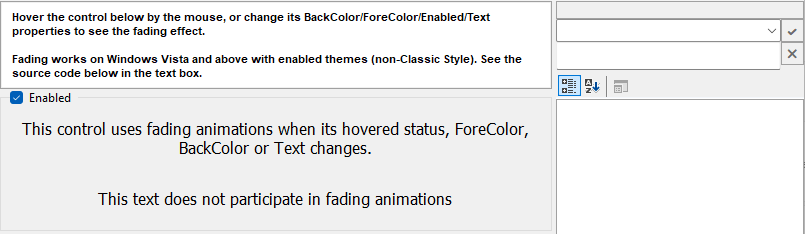

The following image illustrates a custom control that uses the FadingPainterTState class:

A custom control using the FadingPainter class in the KGySoft.WinForms.Example application

Tip

The image above is from the example application. At the Releases page of the project repository you can download it as executable binaries as well. The example is located under the Misc Tests / Custom fading control demo menu, displaying also the source code of the control.

Constructors

FadingPainterTState

Creates a new instance of the FadingPainterTState class.

Properties

Control	Gets the host control.
State	Gets or sets the stored last state explicitly. Setting this property does not invalidate the host control.

Methods

Dispose	Performs application-defined tasks associated with freeing, releasing, or resetting unmanaged resources.
Dispose(Boolean)	Disposes the resources used by the FadingPainterTState class.
GetSpeed	Gets the speed of the fading animation between the two specified states. When not overridden, the host's GetFadingAnimationSpeed is requested. If that returns a negative value, FadingAnimationDefaultSpeed is used.
OnThemeChanged	Called when the Windows theme has changed.
Paint	Invokes the PaintState method of the host control if State has been changed. If buffered fading animations are not available, it acts a regular painting session.
StateEquals	Gets whether the specified states are equal.
StopAnimations	Stops all animations for the host control.
