AdvancedRadioButton Class

[ToolboxBitmapAttribute(typeof(RadioButton))]
public class AdvancedRadioButton : RadioButton,
	ISupportsFading<ControlAppearanceState>, IWin32Window

<ToolboxBitmapAttribute(GetType(RadioButton))>
Public Class AdvancedRadioButton
	Inherits RadioButton
	Implements ISupportsFading(Of ControlAppearanceState), IWin32Window

[ToolboxBitmapAttribute(typeof(RadioButton))]
public ref class AdvancedRadioButton : public RadioButton,
	ISupportsFading<ControlAppearanceState^>, IWin32Window

[<ToolboxBitmapAttribute(typeof(RadioButton))>]
type AdvancedRadioButton =
    class
        inherit RadioButton
        interface ISupportsFading<ControlAppearanceState>
        interface IWin32Window
    end

Inheritance

Object    MarshalByRefObject    Component    Control    ButtonBase    RadioButton    AdvancedRadioButton

Implements

ISupportsFadingControlAppearanceState, IWin32Window

• The AutoSize property works as expected when the radio button is docked.
• Different rendering qualities (see TextRenderingQuality and VisualsRenderingQuality).
• Adjustable colors in disabled state (see DisabledBackColor and DisabledForeColor).
• Buffered fading animations with every FlatStyle (only on Vista and above with visual styles enabled, see FadingAnimationsEnabled and FadingAnimationOptions).
• Consistent font scaling on all platforms when per-monitor DPI awareness is enabled (see AutoScaleFont). Note that it affects font scaling only, so auto-sizing behavior still depends on the current platform.
• Fixed rendering in high DPI modes when the application is DPI aware.

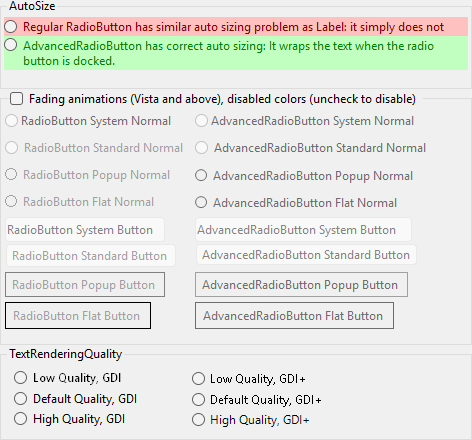

The following image illustrates a few features of the AdvancedRadioButton class, like the default disabled colors difference (the disabled colors are customizable), text rendering quality, and the fixed auto sizing behavior when the control is docked to the top:

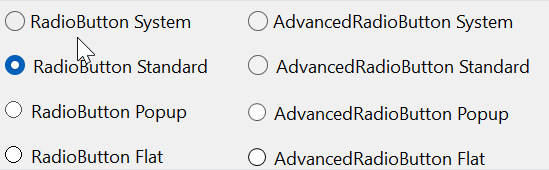

The following animation demonstrates a couple of rendering issues with the regular RadioButton in high DPI mode with 150% scaling (as of .NET 10.0), as well as the buffered fading animations of AdvancedRadioButton, even for non-System FlatStyles:
